ORDERING INFORMATION, Please specify followings :
Material of construction
Number of ports
Thread connection (Input & Output)
Length of Manifold
Working Pressure
Temperature rating
FEATURES

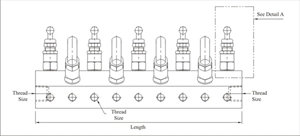

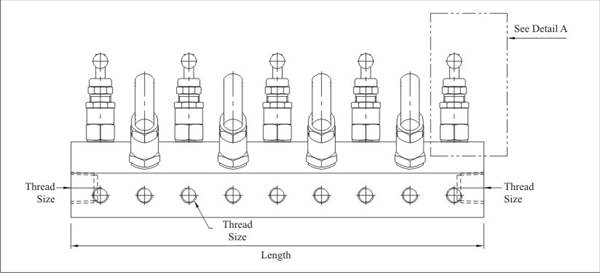

Connecting Inlet 1/2"NPT(F) & Outlet 1/2"NPT(F), Drain or Vent 1/4" NPT(F), 1/8" NPT(F), Nos. of valves upto 20, Other configuration upon request.
Heat code traceability, upon request.

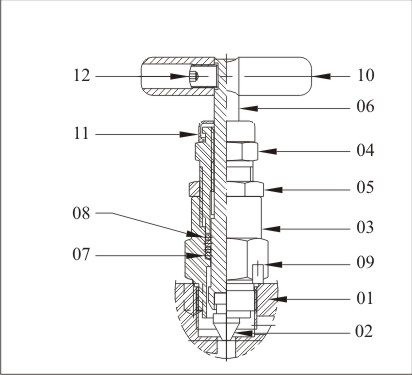

BONNET ASSEMBLY
Screwed bonnet design.
Bonnet-back seated blow out proof.
Spindle tip-Non rotating tip shut off type.
Dust cap protects stem threads from externals contamination.
Leak tight seal with low operating torque.
TECHANICAL SPECIFICATIONS
Size: 1/2" Inlet x 1/2" Outlet, or 3/4" Inlet x 3/4" Outlet
End connection: NPT,BSPT,Socket weld.
Working Pressure: 6000 psi (413 Bar)
Temperature Rating: PTFE 450°F (232°C), Graphoil 700°F (371°C)

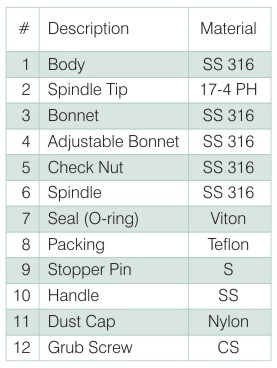

Material of construction: SS 316, SS 304, C.S.
Optional Sour Gas service valves are available confirming to NACE Std. MR - 01 - 75
Stem packing: PTFE, Graphoil.
Orifice: Dia. 4.7mm
All manifolds are 100% Factory tested prior to shipment.
APPLICATION
Refineries, liquid petroleum gas processing plant, petrochemical plants, etc.
TESTING
Pneumatic Seat test is performed at 70 bar Nitrogen pressure.
Hydrostatic shell test is performed at 1.5 times the working pressure.
