FEATURES

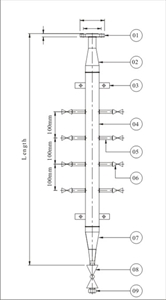

Pipe air header distributor. Connects pipe to pipe or flange to flange Drain / Vent connection & 1/4" NPT, 1/2"NPT on either side of pipe.
TECHNICAL SPECIFICATIONS
Inlet /Outlet : 1/2", 3/4", 1" threaded or flanged.
End connection: NPT, BSPT, and BSPP Nipple
Working Pressure: 6000 psi (413 bar)
Temperature Rating: PTFE 450 Deg. F (232 Deg.C), Graphoil 700 Deg. F (371 Deg. C)
Material of construction : SS 316, SS 304, C.S.
Optional Sour Gas service valves are available confirming to NACE Std. MR - 01 - 75
All Air Headers are 100% Factory tested prior to shipment
APPLICATION
Refineries, liquid petroleum gas processing plant, etc.
TESTING
Pneumatic is performed at 7 bar.
Hydrostatic shell test is performed at 1.5 times the working pressure.
