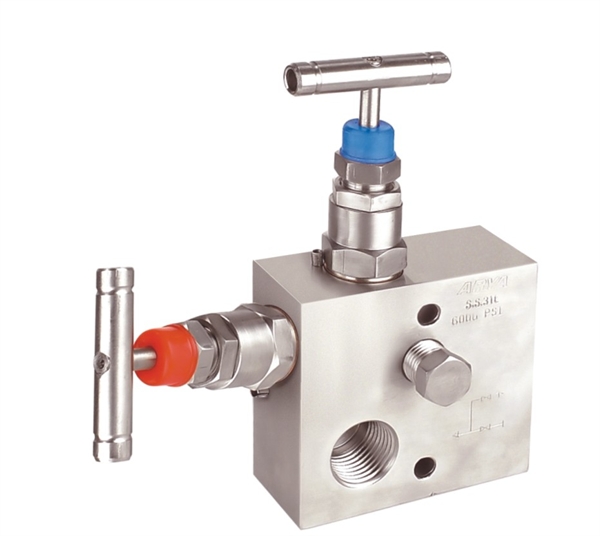

These are two valve isolation manifold with remote mounting (pipe to pipe) feature. Have one process isolation valve and one drain/vent valve. Standard model has one inlet of 1/2” and one outlet of 1/2” with 1/4” vent.
Supplied with mounting holes for wall or bracket mounting.
Features :
-
1x isolation and 1x vent valve for instrument drain/vent applications.
-
All valves have 2-piece non-rotating hardened (17-4PH) tips as standard for bubble tight
shut off & long service life.
-
Metal to metal body bonnet seal for high pressure and high temperature sealing.
-
2 x 6.5 mm diameter mounting holes as standard.
-
Temperature range 100 ºC to 230 ºC (400 ºC with G option).
-
Available in 316 Stainless steel, Monel, Duplex & other exotic materials.
-
Mounting holes as standard to allow fixing to pipe stand or enclosures.
-
Complete material traceability.
-
Also available with material compliance to NACE MR-01-75.
Note :
-

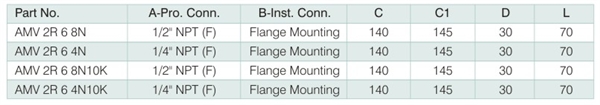

For BSPT connection use R instead of N. eg. AMV 2R 6 8R.
-
For temperature rating of 400 ºC, Grafoil packing add - G to Part no.
-

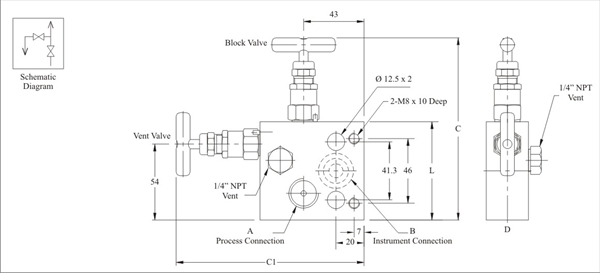

All dimensions are in millimeter and for reference only.
-
Valve open tolerance is ±2mm and other ±0.5mm.
|
|
|
|
|
|
|
|
