Needle Valve-AN (Square Body)

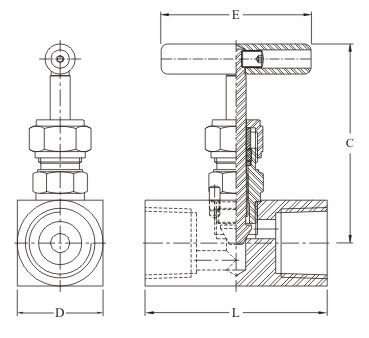

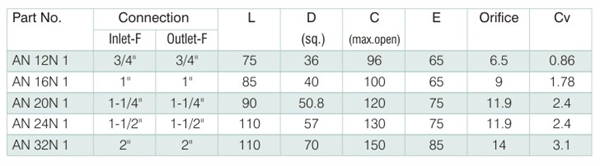

AN Series - Female x Female

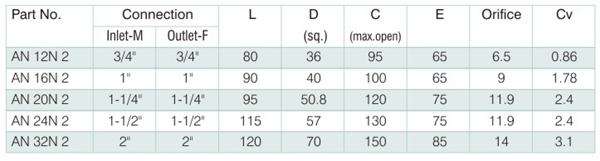

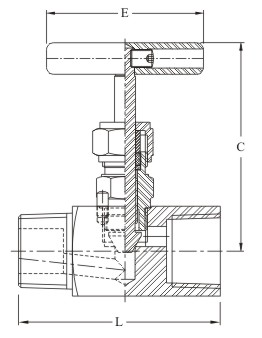

AN Series - Male x Female

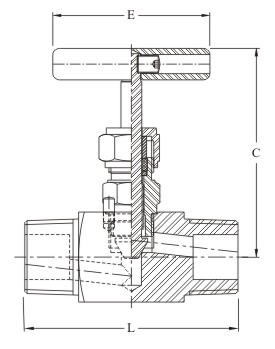

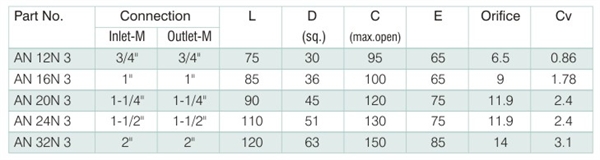

AN Series - Male x Male
Note :
-
For 10,000 psi, Suffix 10K to Model no. eg.: AN 2N1-10K
-
For BSPP connection use G instead of N. eg. AN 2G 1.
-
For temperature rating of 400 ºC, Grafoil packing add - G to Part no.
-
All dimensions are in Millimeter and for reference only.
|
|
|
|
|
|
|
|
