Needle Valve-AH (Hex Body)

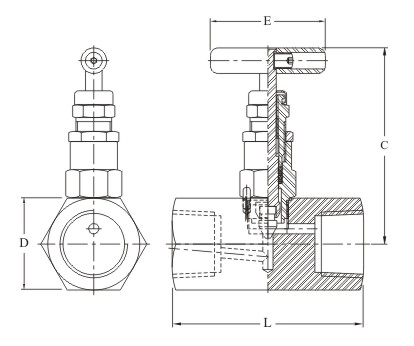

AH Series - Female x Female

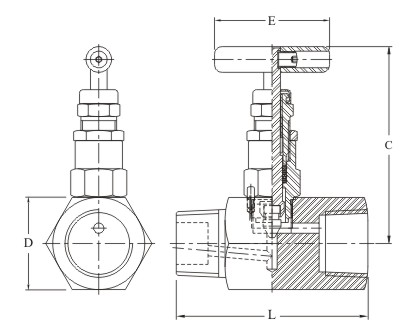

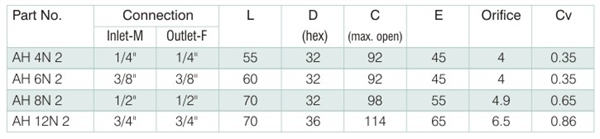

AH Series - Male x Female

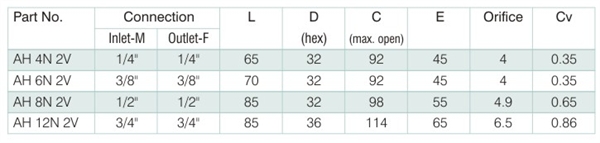

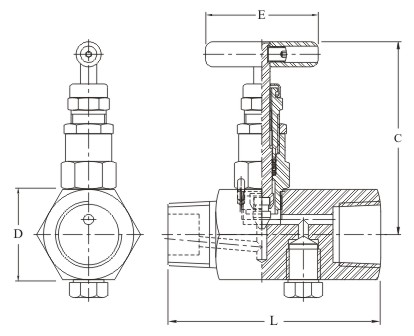

AH Series - Male x Female
Note :
-
For BSPP connection use G instead of N. eg. AN 2G 2.
-
For temperature rating of 400 ºC, Grafoil packing add - G to Part no.
-
All dimensions are in Millimeter and for reference only.
|
|
|
|
|
|
|
|
