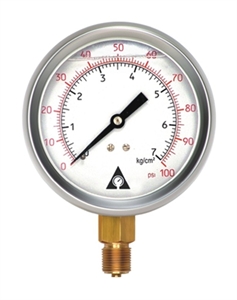

Picture of INDUSTRIAL PRESSURE GAUGE SBI

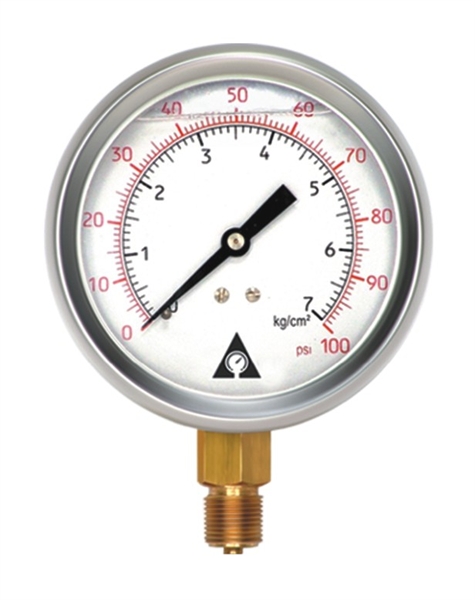

INDUSTRIAL PRESSURE GAUGE SBI


Product image Product image
SBI Leakproof, weatherproof construction and liquid fiIIed gauges are ideaIly suited forvarious machines application, where vibration and pulsation is high, stainless steel casing and non-ferrous internals makes these gauges for non-aggresive and non-corrosive process media.
FILLABLE DRY VERSION

Dial Size                                         :63mm/110mm/160mm
Accuracy                                        :±1.0 % F.S.
Ambient Temperature                        :-25°C to 65°C
Process Temperature                        :Maximum 65°C
Operating Pressure:Maximum 75% of the full Scale Value
Over Pressure Limit:Full Scale Value :
                        30% for pressure ranges < 60 kg/cm2
                        25% for pressure range = 100 kg/cm2
                        15% for pressure ranges > 100 kg/cm2
Protection                :IP 65 / IP 55
Bourdon                :Non-Ferrous < 70 kg/cm2
                                Stainless Steel 316 > 70 kg/cm2
Movement                :Non-Ferrous
Socket Material           :Non-Ferrous
Case & Bezal        :Stainless Steel 304
Dial                        :Aluminum, Black graduation on White background,
Pointer                :Aluminum Black Coloured fix
Window                :Plexiglass
Gasket                :EPDM
Blow off Disc        :EPDM
Joints                        : Brazing

FILLED VERSION

Accuracy                :+ 1.6 % of F.S.
Ambient Temperature:Maximum 65°C
Process Temperature:Maximum 65°C
Filling Plug                :EPDM
Window                :Plexiglass
Damping Liquid        :Glycerine
Other Features        :Same as Dry version
