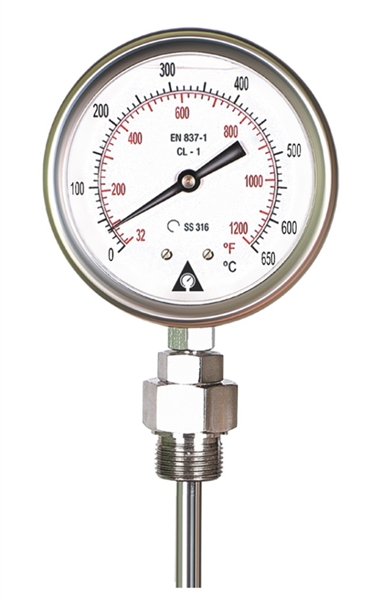

MERCURY FILLED THERMOMETERS MST
MST
These are complete stainless steel constructed and weather proof temperature field instruments, specifically designed to meet requirements of all -kinds of process industries.
SPECIFICATION
Dial Size : 110mm /160mm
Accuracy : ±1.0 % of F.S.
Ambient Temperature : -25°C to 65°C
Operating Temperature : Maximum 75% of the full Scale Value
Protection : IP 65
Process Conn.& Bulb : Stainless Steel 316
Capillary : Stainiess Steel 304
Bourdon : Stainless Steel 304
Welding : TIG Argon arc.
Case & Ring : Stainless Steel 304
Movement : Stainless Steel 304
Dial : Aluminum, Black Markings with
White background
Pointer : Aluminum, Black Coloured
Micrometer : Zero adjustable
Window : Glass 4.00mm thick
Gasket : EPDM
Case Compensation : Bimetallic Compensator
|
|
|
|
|
|
|
|
