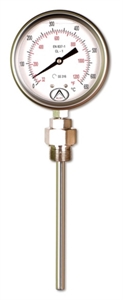

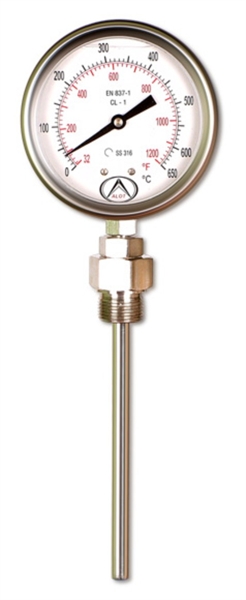

These are complete stainless steel constructed and weather proof temperature field instruments, specifically designed to meet requirements for engines of shipping, power, generators, where process temperature and vibrations are high.
-
ACCURACY : ± 1.0% of F.S.
-
AMBIENT TEMPERATURE : -25°C to 65°C
-
OPERATING TEMPERATURE : 25°C/+ 65°C
-
PROTECTION : IP 65
-
PROCESS CONNECTIONS BULB : Stainless Steel 316
-
BOURDON : Stainless Steel 316
-
WELDING: TIG Argon arc.
-
CASE & RING : Stainless Steel 304
-
MOVEMENT: Stainless Steel 304
-
DIAL : Aluminum, Black Markings with
-
White background
-
POINTER : Aluminum Black Coloured, Fix
-
WINDOW : Plexi Glass 4.00mm thick
-
GASKET: EPDM / Nitrile
-
CASE COMPENSATION : Bimetallic Compensator
-
BEZAL : Crimped
- CASE FILLING LIQUID : Silicon Oil / Glycerine
-
-
DIAL SIZE : 100mm
-
RANGE : 50/600°C, 0/650°C
-
UNITS : Degree Centigrade (°C),
-
Degree Ferenite (°F)
-
CONNECTION : 1/2", 3/4”,-BSP/NPT-Male
-
CONNECTION TYPE : Adjustable
-

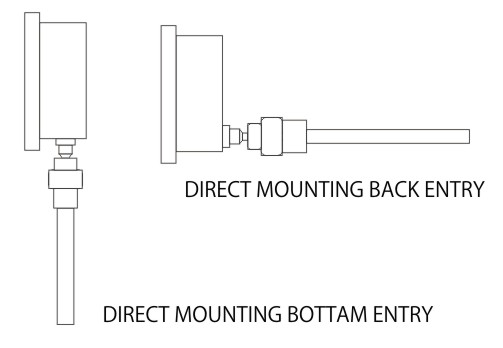

ENTRY : Bottom & Back
-
MOUNTING : Direct
-
BULB & STEM DIA. : 10mm, 12mm
-
IMMERSION LENGTH : As required, Standard 300mm
-
OPTIONS : Glycerine Filling in case
-
Shatter Proof Glass
-
Anti-Vibration Spring
-
Capillary
-
ACCESSORY : Thermowell
|
|
|
|
|
|
|
|
